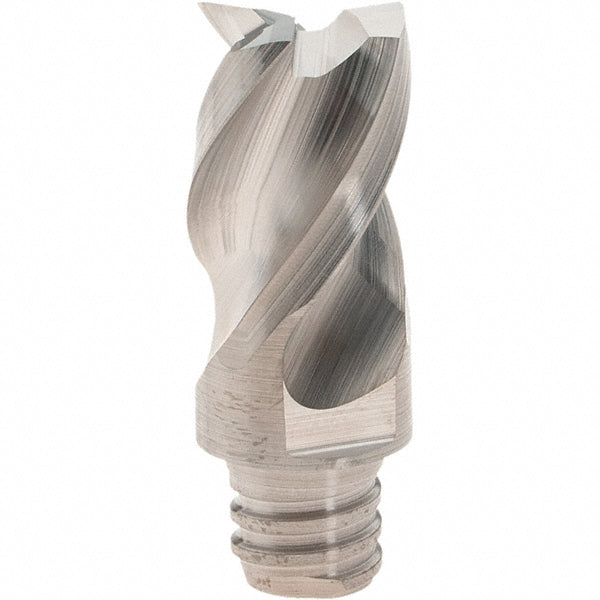

Carbide Insert, Grade IC08 - Iscar 5623051

Iscar

Carbide Insert, Grade IC08 - Iscar 5623051

MFR# 5623051Series MM EA-CF

$102.29List $131.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC08

Description

The Iscar 5623051 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0079
Cutting diameter0.4728
Cutting width0.4728in
Extension from holder in0.9055
Functional length0.9062
Helix angle40
Included angle degree90
Insert handRight Hand
Insert size120H12R0.2
Lead angle90
Length of cut0.4728in
Manufacturers catalog number5623051
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.4728
Milling tip full descriptionMM EA120H12R0.2CF-3T08
Milling tip styleMM EA-CF
Milling tip typeRoughing
Number of flutes3
Overall length in29/32in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
