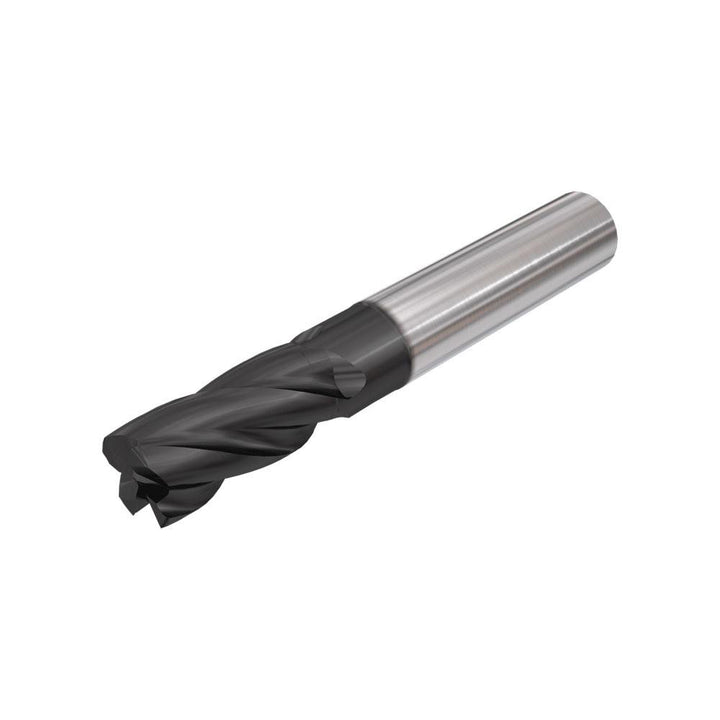

5/8in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623086

Iscar

5/8in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623086

MFR# 5623086Series ECI-H4R-CF

$290.39List $371.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5623086 is a 5/8in 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/4in length of cut, 4in overall length. Series ECI-H4R-CF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in1-1/4in
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerancee8
Number of flutes4
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length1.8700
Shank diameter in5/8in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
