Iscar

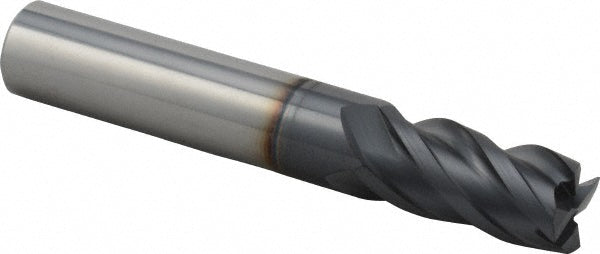

7/16" 4-Flute Solid Carbide Square End Mill, AlTiN - Iscar 5623114

Name: 7/16" 4-Flute Solid Carbide Square End Mill, AlTiN - Iscar 5623114
Brand: Iscar
SKU: 5623114
Price: 87.17 USD
Availability: InStock

MFR# 5623114Series ECI-E-4

$87.17List $109.70 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5623114 is a 7/16 4-flute Solid Carbide (IC900) square end mill with a AlTiN finish for longer tool life. Suited for hardened materials, cast iron, stainless steel, steel, high-temp alloy. 3/4 length of cut, 2-3/4 overall length. Series ECI-E-4.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeRegular

Material gradeIC900

Mill diameter in7/16

Number of flutes4

Overall length in2-3/4

Primary workpiece materialHardened Materials; Cast Iron; Stainless Steel; Steel; High-Temp Alloy

Reach length0.7500

Shank diameter in7/16

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
