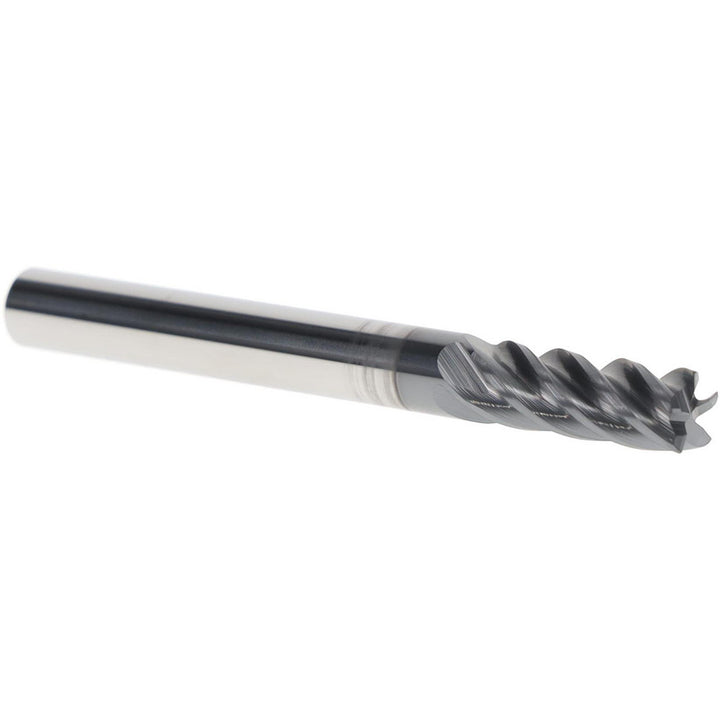

1/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623151

Iscar

1/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623151

MFR# 5623151Series ECI-H5R-CF

$72.86List $91.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5623151 is a 1/4 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2-1/2 overall length. Series ECI-H5R-CF.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut0.3750
Length typeMedium
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/4
Number of flutes5
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length0.6300
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
