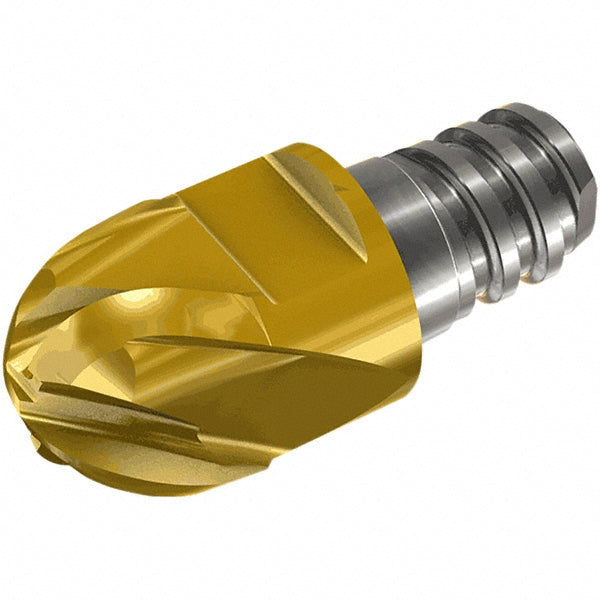

Carbide Insert, Grade IC908, TiAlN - Iscar 5623325

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623325

MFR# 5623325Series MM EC-4

$58.17List $74.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5623325 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.1870
Cutting width0.1870in
Extension from holder in0.5910
Functional length0.5910
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.187B27R000
Lead angle90
Length of cut0.2700in
Manufacturers catalog number5623325
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2700
Milling tip full descriptionMM EC.187B27R000-4T05
Milling tip styleMM EC-4
Milling tip typeEnd
Number of flutes4
Overall length0.5910in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
