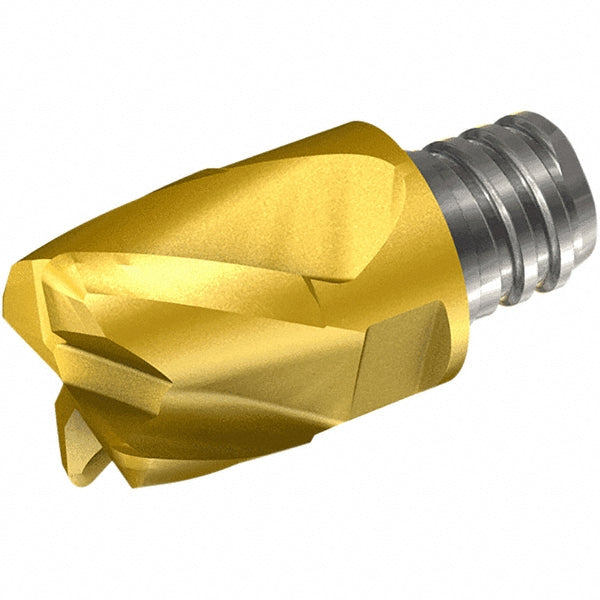

Carbide Insert, Grade IC908, TiAlN - Iscar 5623326

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623326

MFR# 5623326Series MM EB

$64.88List $83.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5623326 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0900
Cutting diameter0.1870
Cutting width0.1870in
Extension from holder in0.5910
Functional length0.5900
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size.187E27
Lead angle90
Length of cut0.2800in
Manufacturers catalog number5623326
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2800
Milling tip full descriptionMM EB.187E27-4T05
Milling tip styleMM EB
Milling tip typeBall Nose
Number of flutes4
Overall length0.5900in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
