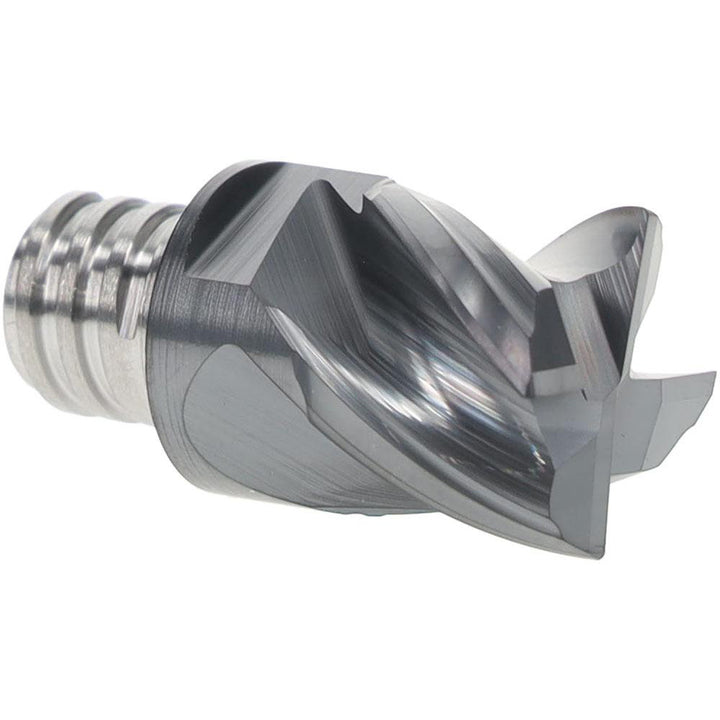

Carbide Insert, Grade IC908, TiAlN - Iscar 5623430

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623430

MFR# 5623430Series MM EC-CF

$131.34List $168.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5623430 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0150
Cutting diameter (mm)12.70
Cutting width0.5000in
Extension from holder in0.6500
Functional length0.6500
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size500E37R15
Lead angle90
Length of cut0.3740in
Manufacturers catalog number5623430
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3740
Milling tip full descriptionMM EC500E37R15CF-4T08
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
