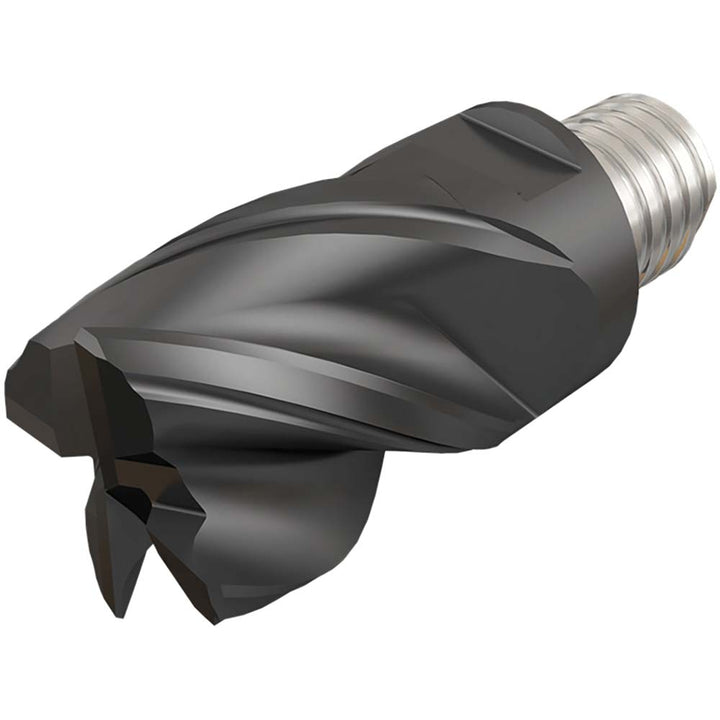

Carbide Insert, Grade IC908, TiAlN - Iscar 5623435

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5623435

MFR# 5623435Series MM EC-CF

$312.33List $400.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
GradeIC908
CoatingTiAlN

Description

The Iscar 5623435 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2500
Cutting diameter1.0000
Cutting width1.0000in
Functional length1.4560
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size1.0E86R250
Lead angle90
Length of cut0.8930in
Manufacturers catalog number5623435
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.8930
Milling tip full descriptionMM EC1.0E86R250CF-5T15 90
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes5
Overall length1.4560in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
