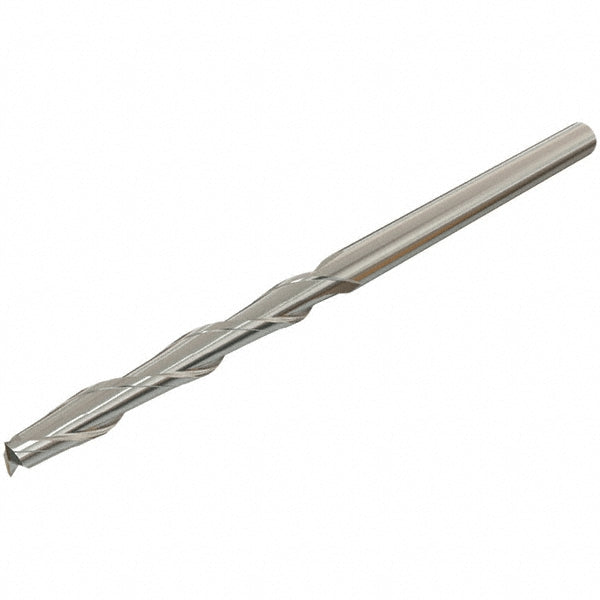

0.1969" 2-Flute Solid Carbide Square End Mill - Iscar 5650495
MFR# 5650495
$51.30List $65.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Iscar 5650495 is a 0.1969 2-flute Solid Carbide (IC08) square end mill. Suited for non-ferrous metal. 1.5748 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.5748
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeIC08
Mill diameter0.1969
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes2
Overall length (mm)100
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.1969
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
