Iscar

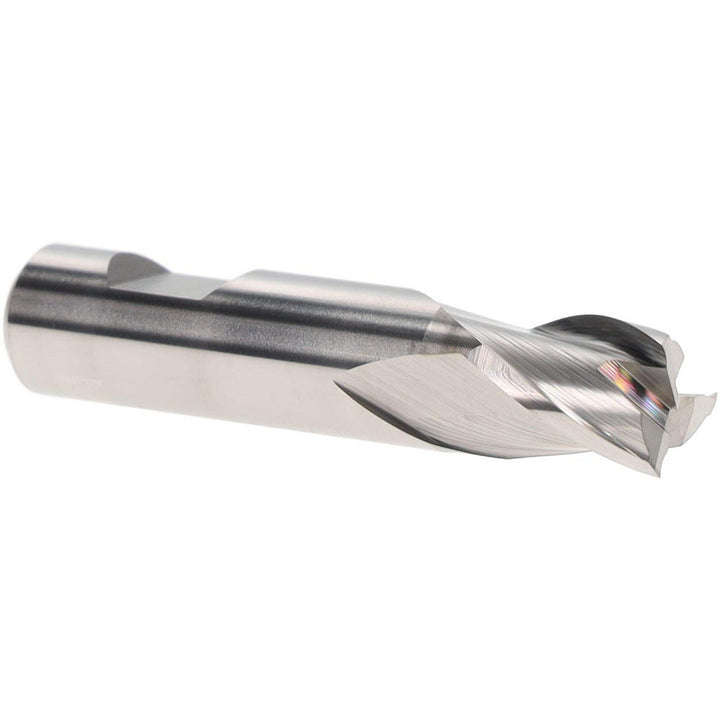

0.3819" 3-Flute Solid Carbide Square End Mill - Iscar 5650527
MFR# 5650527
$54.04List $69.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The Iscar 5650527 is a 0.3819 3-flute Solid Carbide (IC08) square end mill. Suited for non-ferrous metal. 0.4331 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.4331
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeIC08
Mill diameter0.3819
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes3
Overall length (mm)48.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3937
Shank diameter tolerance0.000/-0.011 mm
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
