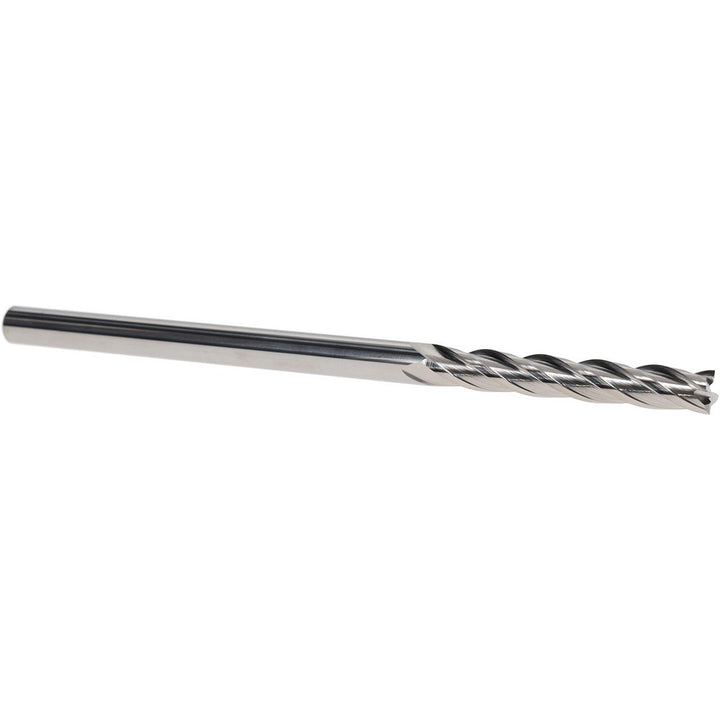

0.3150" 4-Flute Solid Carbide Square End Mill - Iscar 5650727

Iscar

0.3150" 4-Flute Solid Carbide Square End Mill - Iscar 5650727

MFR# 5650727

$108.62List $139.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The Iscar 5650727 is a 0.3150 4-flute Solid Carbide (IC08) square end mill. Suited for non-ferrous metal. 1.9685 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.9685
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeIC08
Mill diameter0.3150
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes4
Overall length (mm)150.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3150
Shank diameter tolerance0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
