0.1181" 2-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5651112

Iscar

0.1181" 2-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5651112

MFR# 5651112

$41.08List $52.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

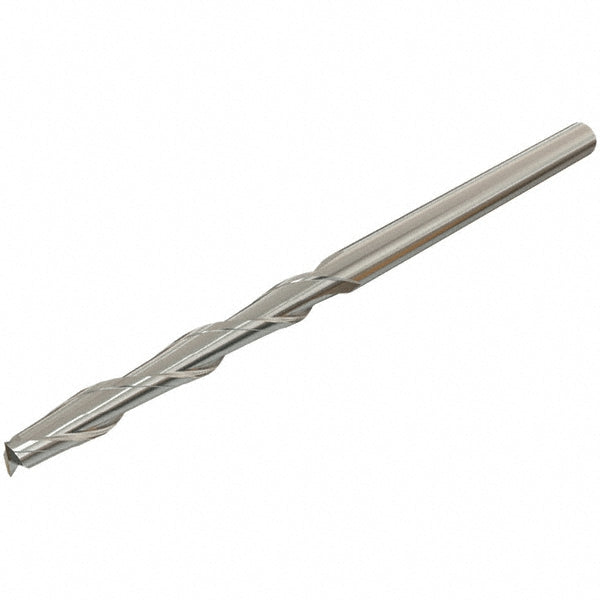

The Iscar 5651112 is a 0.1181 2-flute Solid Carbide (IC900) square end mill with a TiAlN finish for longer tool life. 1.1811 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.1811
Length of cut range1.0000 - 1.2500
Length typeExtra Long
Material gradeIC900
Mill diameter0.1181
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes2
Overall length (mm)75
Shank diameter0.1181
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG0.1181" 2-Flute Solid Carbide Corner Radius End Mill, WXL - OSG 37700010 $56.40 OSG0.1181" 2-Flute Solid Carbide Square End Mill - OSG 482-1181 $23.62 SGS0.1181" 2-Flute Solid Carbide Square End Mill - SGS 43301 $27.62 OSG0.1181" 2-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 3103008 $117.15
