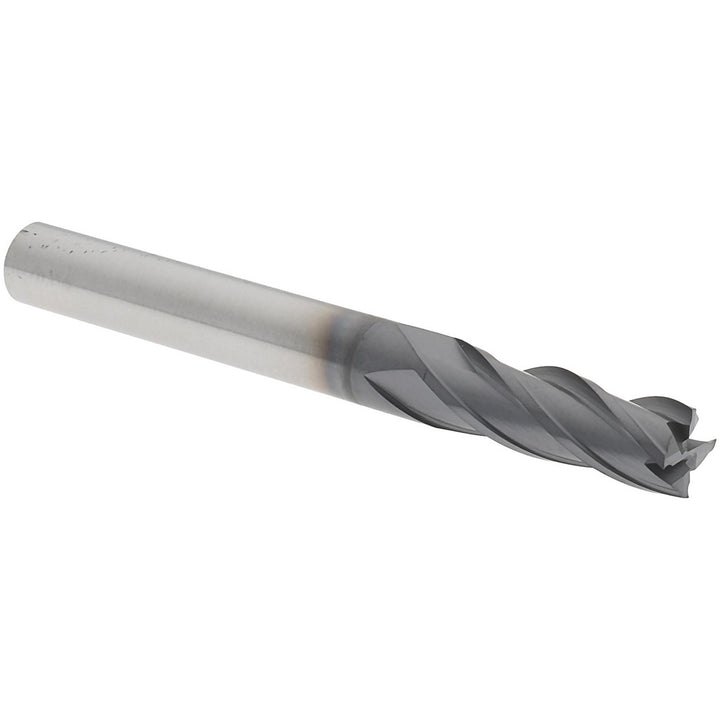

0.2165" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5651190
MFR# 5651190
$40.30List $51.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5651190 is a 0.2165 4-flute Solid Carbide (IC900) square end mill with a TiAlN finish for longer tool life. 0.6299 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.6299
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeIC900
Mill diameter0.2165
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes4
Overall length (mm)50.00
Shank diameter0.2165
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
