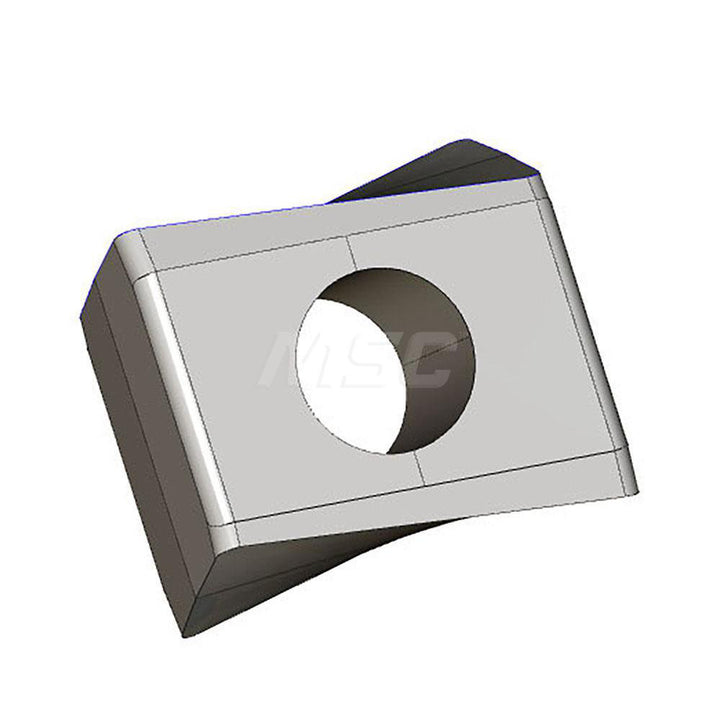

T490 LNAR 0804PN-R-P Solid Carbide Insert, Grade IC07 - Iscar 5666820

Iscar

T490 LNAR 0804PN-R-P Solid Carbide Insert, Grade IC07 - Iscar 5666820

MFR# 5666820ISO/ANSI# T490 LNAR 0804PN-R-PCat# T490 LNAR 0804PN-R-P IC07Series HELITANG

$27.48List $35.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC07
MaterialSolid Carbide

Description

The Iscar 5666820 is a T490 LNAR 0804PN-R-P solid carbide indexable insert, grade IC07. Suited for stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeT490 LNAR 0804PN-R-P IC07
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code0804
Insert styleLNAR
Iso codeT490 LNAR 0804PN-R-P
Length0.3386
Length range0.3200 to 0.4000
Manufacturers catalog numberT490 LNAR 0804PN-R-P IC07
Manufacturer gradeIC07
Material applicationStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2950
Thickness range0.2500 to 0.3500
Width0.1670
