Iscar

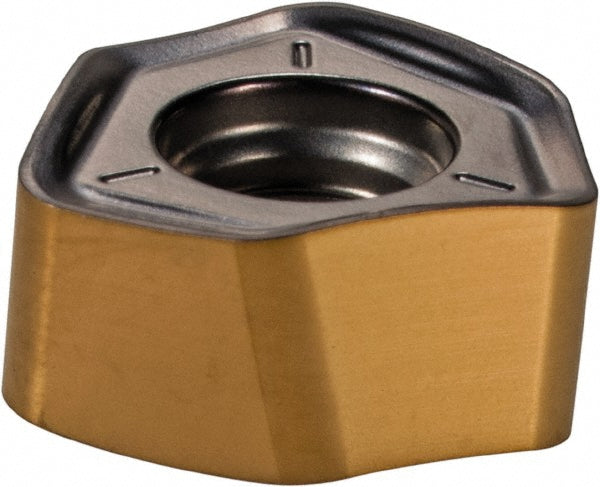

H600 WXCU 070515T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5666930
MFR# 5666930ISO/ANSI# H600 WXCU 070515TCat# H600 WXCU 070515T IC808Series HELI6FEED
$35.29List $45.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5666930 is a H600 WXCU 070515T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH600 WXCU 070515T IC808
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityFWX; EWX
Cutting edge effective length0.2819
Cutting edge styleT-Land
Included angle degree80
Inscribed circle0.4386
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size07
Insert size code070515
Insert styleWXCU
Iso codeH600 WXCU 070515T
Length0.4386
Length range0.4000 to 0.4500
Manufacturers catalog numberH600 WXCU 070515T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2819
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width0.4386
