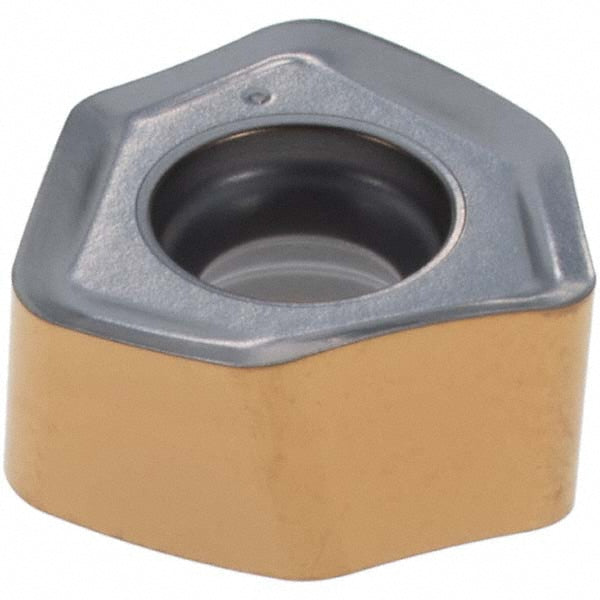

H600 WXCU 070515HP Solid Carbide Insert, Grade IC330, TiCN - Iscar 5666934

Iscar

H600 WXCU 070515HP Solid Carbide Insert, Grade IC330, TiCN - Iscar 5666934

MFR# 5666934ISO/ANSI# H600 WXCU 070515HPCat# H600 WXCU 070515HP IC330Series HELI6FEED

$35.29List $45.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5666934 is a H600 WXCU 070515HP solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH600 WXCU 070515HP IC330
Chip breakerHP
Coating finishTiCN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityFWX; EWX
Cutting edge effective length0.2819
Cutting edge styleSharp
Included angle degree80
Inscribed circle0.4386
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size07
Insert size code070515
Insert styleWXCU
Iso codeH600 WXCU 070515HP
Length0.4386
Length range0.4000 to 0.4500
Manufacturers catalog numberH600 WXCU 070515HP IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2819
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width0.4386
