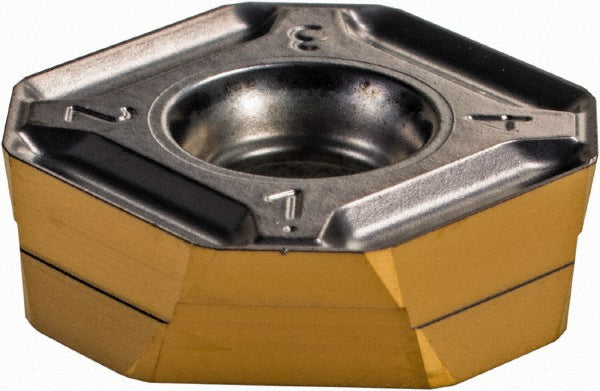

IQ845 SYHU 070400N-MM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5667044

Iscar

IQ845 SYHU 070400N-MM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5667044

MFR# 5667044ISO/ANSI# IQ845 SYHU 070400N-MMCat# IQ845 SYHU 070400N-MM IC830Series DOVEIQMILL

$32.49List $41.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5667044 is a IQ845 SYHU 070400N-MM solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeIQ845 SYHU 070400N-MM IC830
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityIQ845
Cutting edge effective length0.5433
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code070400
Insert styleSYHU
Iso codeIQ845 SYHU 070400N-MM
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog numberIQ845 SYHU 070400N-MM IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.5433
