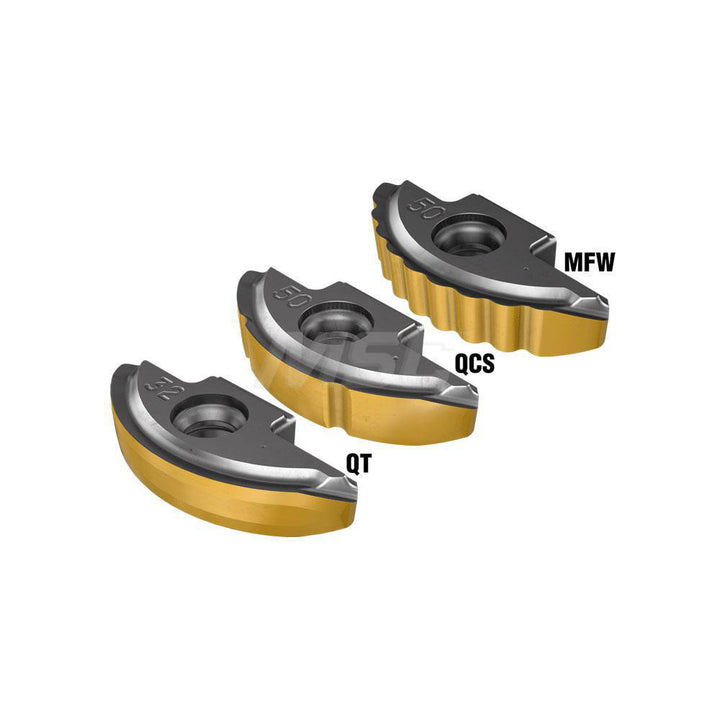

BLR D160-MFW Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5667077

Iscar

BLR D160-MFW Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5667077

MFR# 5667077ISO/ANSI# BLR D160-MFWCat# BLR D160-MFW IC830Series DROPMILL

$35.13List $45.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5667077 is a BLR D160-MFW solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeBLR D160-MFW IC830
Chip breakerMFW
Coating finishAlTiN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityBLP
Cutting edge effective length0.5157
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2402
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size160
Insert size code160
Insert styleBLR
Iso codeBLR D160-MFW
Length in33/64
Length range0.5000 to 0.6000
Manufacturers catalog numberBLR D160-MFW IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5157
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1004
Thickness range0.0000 to 0.1000
Width0.2402
