Carbide Insert, Grade IC08 - Iscar 5667105

Iscar

Carbide Insert, Grade IC08 - Iscar 5667105

MFR# 5667105Series MM EA-CF

$78.70List $100.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC08

Description

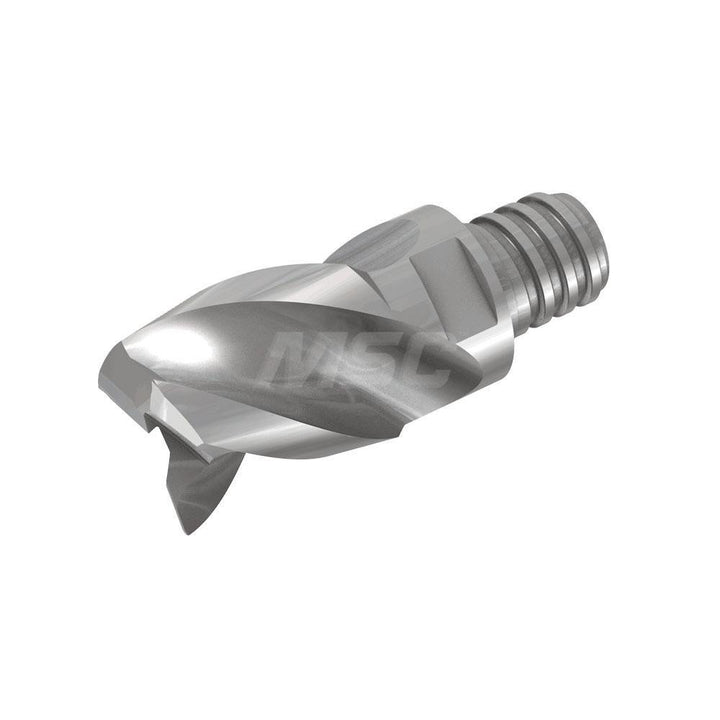

The Iscar 5667105 is a carbide indexable insert, grade IC08. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3152
Cutting width0.3152in
Extension from holder in0.5906
Functional length0.5910
Helix angle40
Included angle degree90
Insert handRight Hand
Insert size080H08R0
Lead angle90
Length of cut0.3152in
Manufacturers catalog number5667105
Manufacturer gradeIC08
Material gradeSub Micrograin
Maximum depth of cut0.3152
Milling tip full descriptionMM EA080H08R0CF-4T05
Milling tip styleMM EA-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.5910in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
