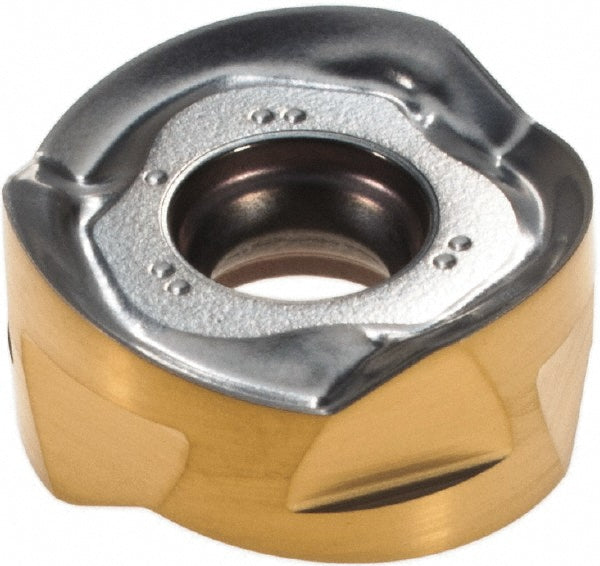

H606 RXCU 43-AXMP Solid Carbide Insert, Grade IC380, TiCN - Iscar 5667113

Iscar

H606 RXCU 43-AXMP Solid Carbide Insert, Grade IC380, TiCN - Iscar 5667113

MFR# 5667113ISO/ANSI# H606 RXCU 43-AXMPCat# H606 RXCU 43-AXMP IC380Series HELIDO

$28.26List $36.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC380
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5667113 is a H606 RXCU 43-AXMP solid carbide indexable insert, grade IC380, TiCN coated. Suited for superalloys & titanium, hard material.

Specifications

Ansi codeH606 RXCU 43-AXMP IC380
Chip breakerAXMP
Coating finishTiCN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityH606 FR.50
Cutting edge effective length0.5100
Cutting edge styleSharp
Included angle degree360
Inscribed circle0.5100
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size43
Insert size code43
Insert styleRXCU
Iso codeH606 RXCU 43-AXMP
Length0.5100
Length range0.5000 to 0.6000
Manufacturers catalog numberH606 RXCU 43-AXMP IC380
Manufacturer gradeIC380
Material applicationSuperalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2550
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.5100
