Iscar

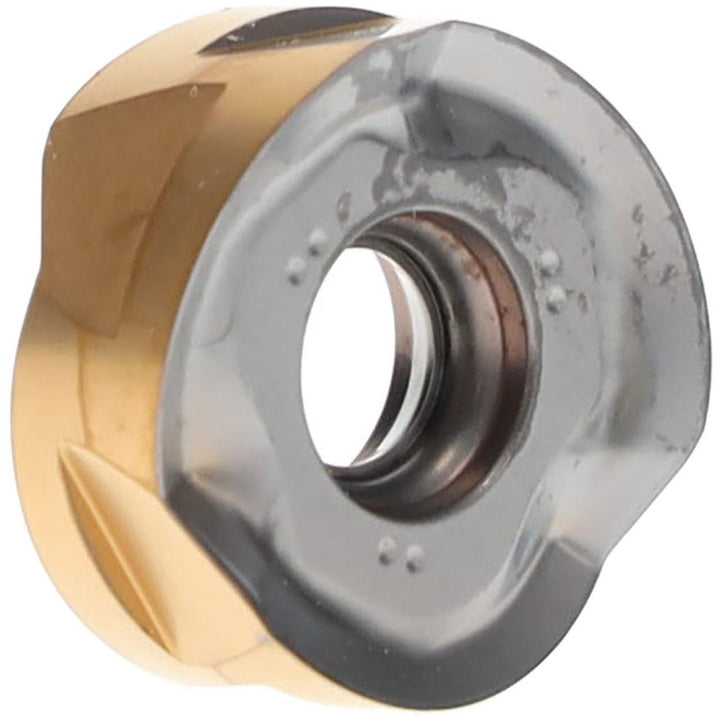

H606 RXCU 43-AXMP Solid Carbide Insert, Grade IC330, TiCN - Iscar 5667114
MFR# 5667114ISO/ANSI# H606 RXCU 43-AXMPCat# H606 RXCU 43-AXMP IC330Series HELIDO
$28.76List $36.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC330
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5667114 is a H606 RXCU 43-AXMP solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH606 RXCU 43-AXMP IC330
Chip breakerAXMP
Coating finishTiCN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityH606 FR.50
Cutting edge effective length0.5100
Cutting edge styleSharp
Included angle degree360
Inscribed circle0.5100
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size43
Insert size code43
Insert styleRXCU
Iso codeH606 RXCU 43-AXMP
Length0.5100
Length range0.5000 to 0.6000
Manufacturers catalog numberH606 RXCU 43-AXMP IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2550
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.5100
