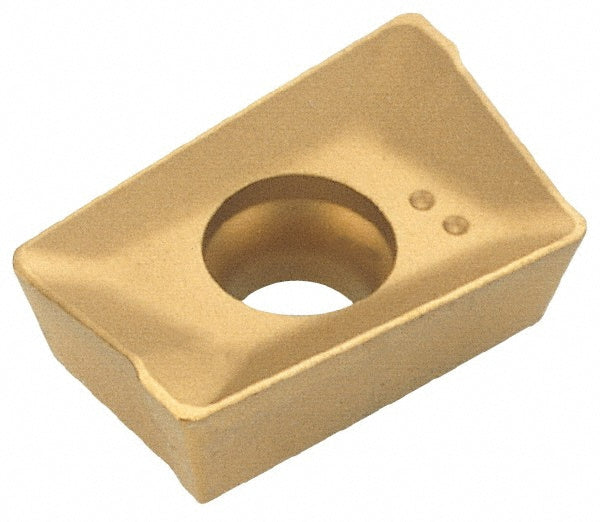

APKR 1003 PD-R Solid Carbide Insert, Grade IC250, TiCN - Iscar 5667613

Iscar

APKR 1003 PD-R Solid Carbide Insert, Grade IC250, TiCN - Iscar 5667613

MFR# 5667613ISO/ANSI# APKR 1003 PD-RCat# APKR 1003 PD-R IC250Series APKR

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC250
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5667613 is a APKR 1003 PD-R solid carbide indexable insert, grade IC250, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeAPKR 1003 PD-R IC250
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHM90-10
Cutting edge effective length0.4060
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKR
Iso codeAPKR 1003 PD-R
Length0.4410
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKR 1003 PD-R IC250
Manufacturer gradeIC250
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2638
