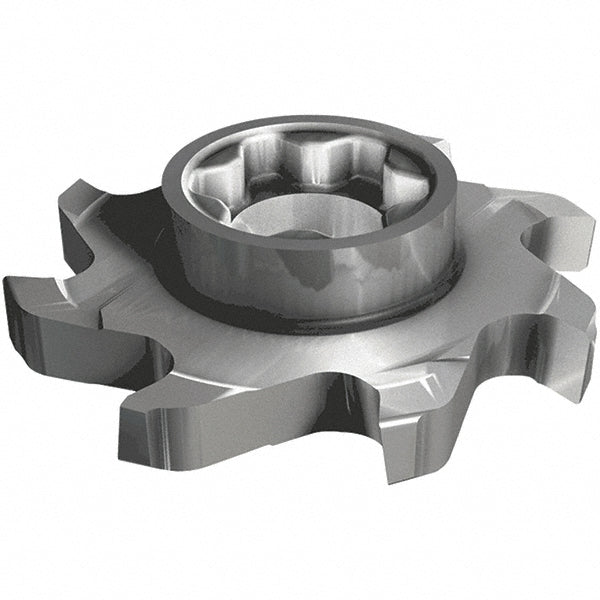

Carbide Insert, Grade IC908, TiAlN - Iscar 5667799

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5667799

MFR# 5667799Series SD-SP

$197.94List $253.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes10
GradeIC908
CoatingTiAlN

Description

The Iscar 5667799 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0160
Cutting diameter1.4880
Cutting width0.1560in
Functional length0.2870
Included angle degree90
Insert handRight Hand
Insert sizeD1.50-H156D
Lead angle90
Length of cut0.4720in
Manufacturers catalog number5667799
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4720
Milling tip full descriptionSD D1.50-H156D-SP13
Milling tip styleSD-SP
Milling tip typeT-Slot
Number of flutes10
Overall length0.2870in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
