Carbide Insert, Grade IC908, TiAlN - Iscar 5667801

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5667801

MFR# 5667801Series SD-SP

$204.20List $261.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes10
GradeIC908
CoatingTiAlN

Description

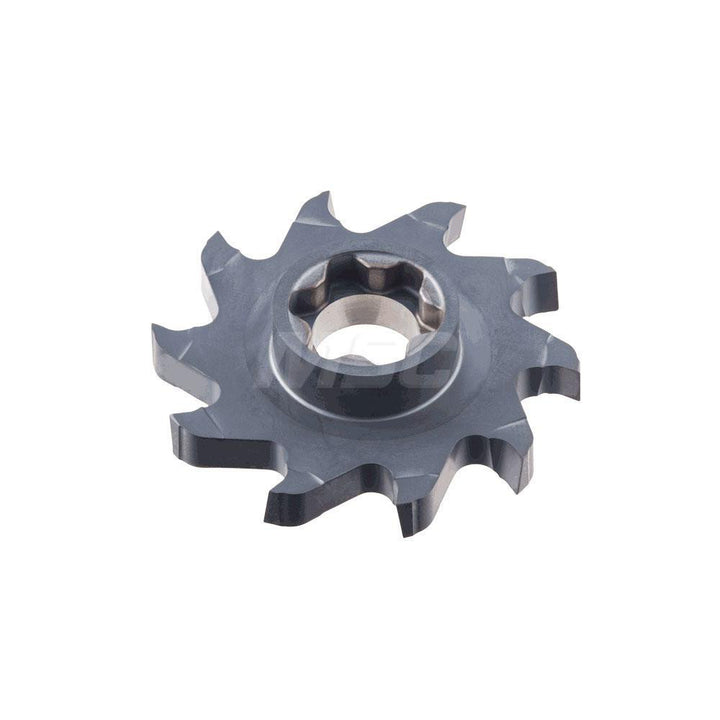

The Iscar 5667801 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0160
Cutting diameter1.4880
Cutting width0.187
Functional length0.3930
Included angle degree90
Insert handRight Hand
Insert sizeD1.50-H187D
Lead angle90
Length of cut0.3930
Manufacturers catalog number5667801
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3930
Milling tip full descriptionSD D1.50-H187D-SP17
Milling tip styleSD-SP
Milling tip typeT-Slot
Number of flutes10
Overall length0.393
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
