Carbide Insert, Grade IC908, TiAlN - Iscar 5667834

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5667834

MFR# 5667834Series MM EPG

$71.05List $91.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes1
GradeIC908
CoatingTiAlN

Description

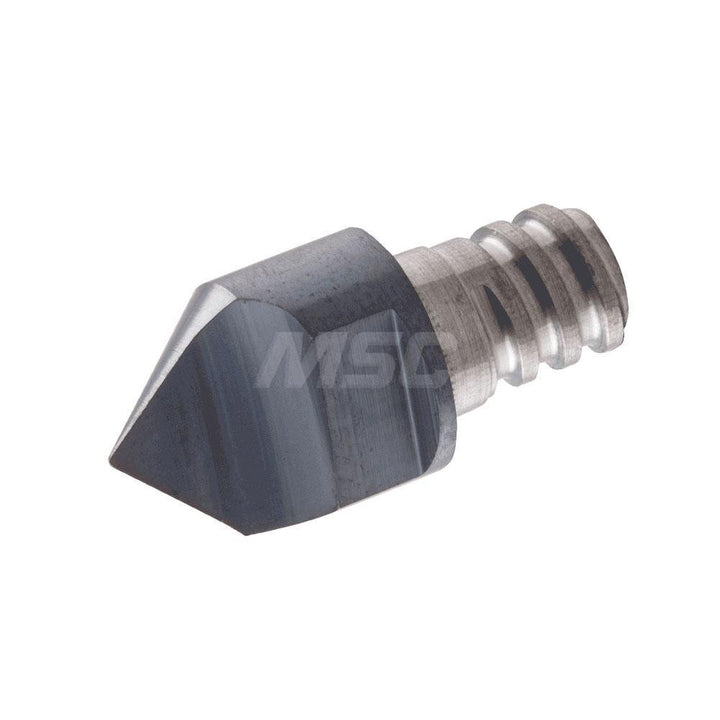

The Iscar 5667834 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0079
Cutting diameter0.3152
Cutting width0.3152in
Extension from holder in0.3937
Functional length0.3940
Included angle degree90
Insert handRight Hand
Insert size080/90
Lead angle45
Manufacturers catalog number5667834
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM EPG080/90-1T05
Milling tip styleMM EPG
Milling tip typeEngraving Tool
Number of flutes1
Overall length0.3940in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
