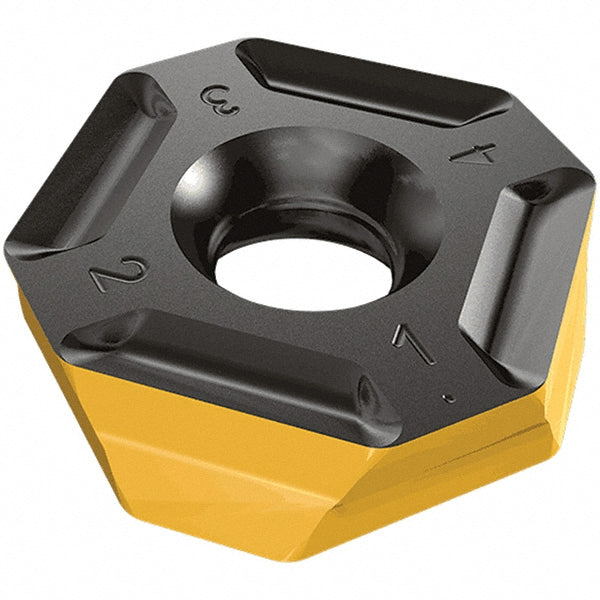

IQ845 SYHU 0704ADN-P Solid Carbide Insert, Grade IC28 - Iscar 5667874
MFR# 5667874ISO/ANSI# IQ845 SYHU 0704ADN-PCat# IQ845 SYHU 0704ADN-P IC28Series DOVEIQMILL
$26.00List $33.30
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5667874 is a IQ845 SYHU 0704ADN-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeIQ845 SYHU 0704ADN-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityIQ845
Cutting edge effective length0.5118
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code0704
Insert styleSYHU
Iso codeIQ845 SYHU 0704ADN-P
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog numberIQ845 SYHU 0704ADN-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.1810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.5433
