Iscar

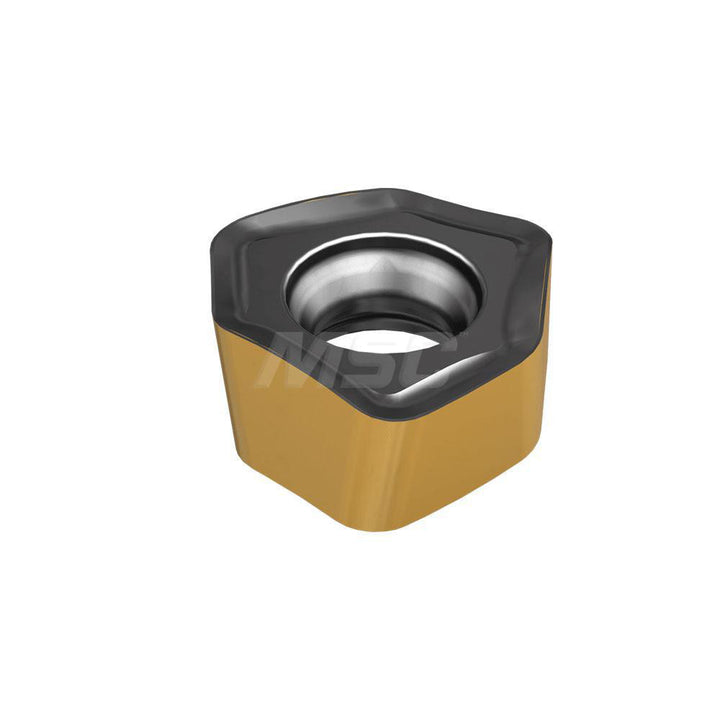

H600 WXCU 080616RM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5667953
MFR# 5667953ISO/ANSI# H600 WXCU 080616RMCat# H600 WXCU 080616RM IC808Series HELI6FEED
$36.47List $46.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5667953 is a H600 WXCU 080616RM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH600 WXCU 080616RM IC808
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityFWX
Cutting edge effective length0.3465
Cutting edge styleT-Land
Included angle degree80
Inscribed circle0.5374
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080616
Insert styleWXCU
Iso codeH600 WXCU 080616RM
Length0.5374
Length range0.5000 to 0.6000
Manufacturers catalog numberH600 WXCU 080616RM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3465
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.5374
