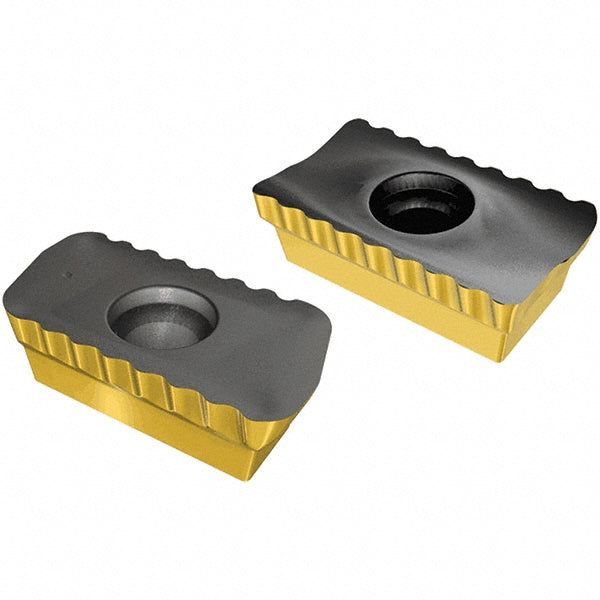

P290 ACKT 1806PDR-FWR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5668019

Iscar

P290 ACKT 1806PDR-FWR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5668019

MFR# 5668019ISO/ANSI# P290 ACKT 1806PDR-FWRCat# P290 ACKT 1806PDR-FWR IC830Series MILLSHRED

$29.75List $38.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5668019 is a P290 ACKT 1806PDR-FWR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeP290 ACKT 1806PDR-FWR IC830
Chip breakerFWR
Coating finishAlTiN
Coating processPVD
Corner radius0.1496
Cutter series compatibilityP290
Cutting edge effective length0.7090
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.4210
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1806
Insert styleACCT
Iso codeP290 ACKT 1806PDR-FWR
Length0.7950
Length range0.7000 to 0.9000
Manufacturers catalog numberP290 ACKT 1806PDR-FWR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.7090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.4210
