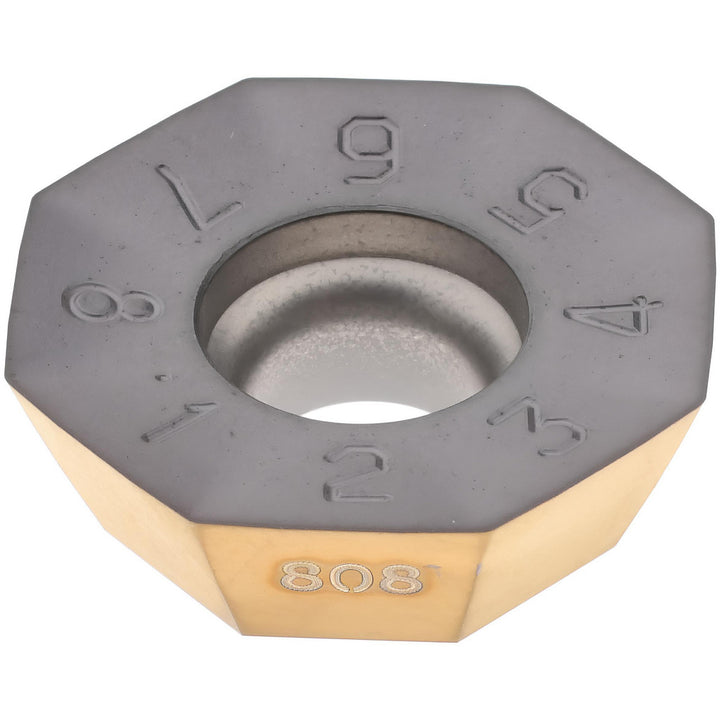

OECR 060405AER Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5668057
MFR# 5668057ISO/ANSI# OECR 060405AERCat# OECR 060405AER IC808Series HELIOCTO
$27.72List $35.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5668057 is a OECR 060405AER solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeOECR 060405AER IC808
Chip breakerAER
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.1460
Cutting edge styleSharp
Included angle degree135
Inscribed circle0.5689
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060405
Insert styleOECR
Iso codeOECR 060405AER
Length0.5689
Length range0.5000 to 0.6000
Manufacturers catalog numberOECR 060405AER IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1460
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1930
Thickness range0.1850 to 0.2000
Width0.5689
