Iscar

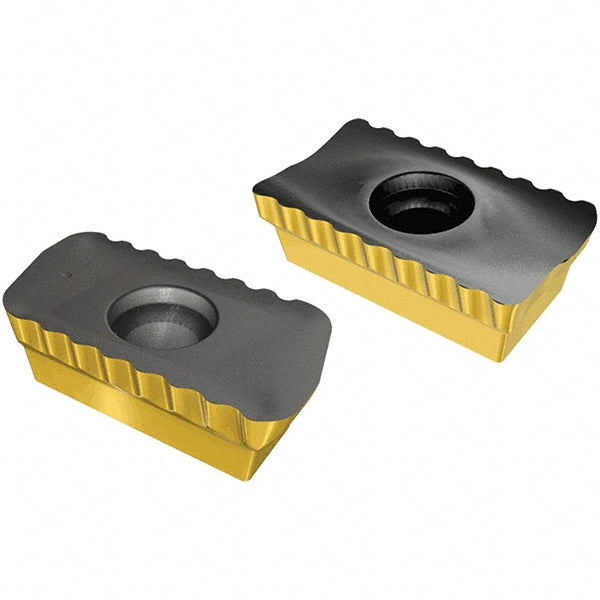

P290 ACCT 1806PDR-HL Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5668061
MFR# 5668061ISO/ANSI# P290 ACCT 1806PDR-HLCat# P290 ACCT 1806PDR-HL IC808Series MILLSHRED
$32.49List $41.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5668061 is a P290 ACCT 1806PDR-HL solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeP290 ACCT 1806PDR-HL IC808
Chip breakerHL
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityP290
Cutting edge effective length0.7090
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.4230
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1806
Insert styleACCT
Iso codeP290 ACCT 1806PDR-HL
Length0.7640
Length range0.7000 to 0.9000
Manufacturers catalog numberP290 ACCT 1806PDR-HL IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.7090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2560
Thickness range0.2500 to 0.3500
Width0.4230
