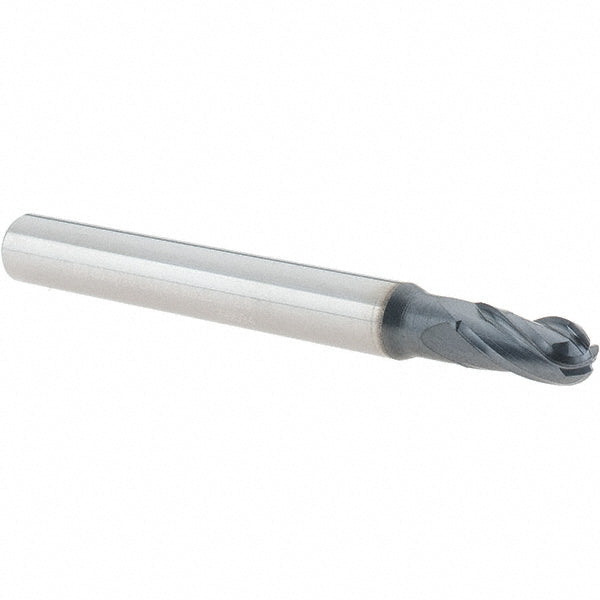

0.1969" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5668215

Iscar

0.1969" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5668215

MFR# 5668215Series EB-E4L-CF

$64.73List $82.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5668215 is a 0.1969 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a TiAlN finish for longer tool life. Series EB-E4L-CF.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleVariable
Length of cut (mm)10.00
Length typeRegular
Material gradeUltra Fine Grain
Mill diameter0.1969
Mill diameter tolerance-0.020 to -0.038 mm
Number of flutes4
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance0.000 to -0.008 mm
Single or double endSingle
Variable helixNo
Variable indexNo
