Iscar

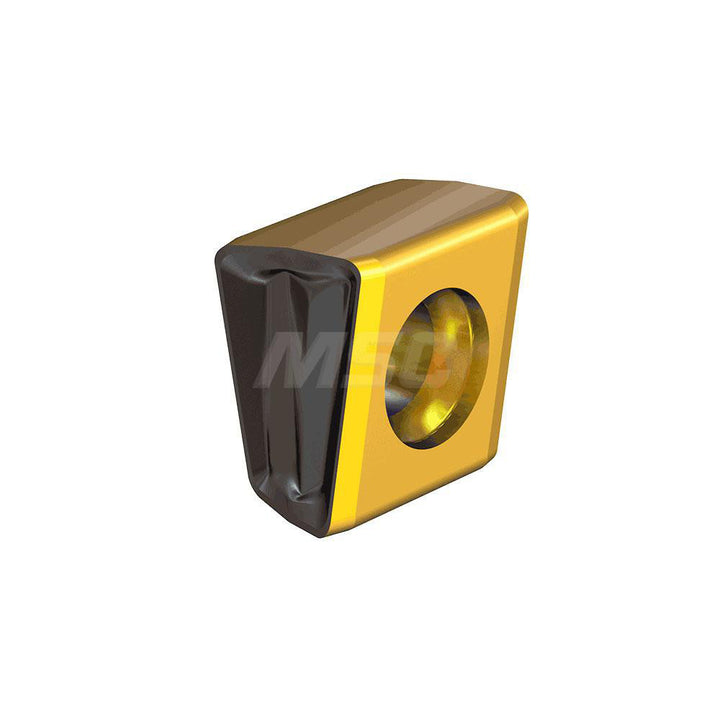

T490 LNMT 1106PNTR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5668241
MFR# 5668241ISO/ANSI# T490 LNMT 1106PNTRCat# T490 LNMT 1106PNTR IC808Series HELITANG
$26.86List $34.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5668241 is a T490 LNMT 1106PNTR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeT490 LNMT 1106PNTR IC808
Chip breakerPNTR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT490 LNK11
Cutting edge effective length0.4134
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNMT
Iso codeT490 LNMT 1106PNTR
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberT490 LNMT 1106PNTR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3540
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4450
Thickness range0.3500 to 0.5000
Width0.2360
