S845 SNMU 1806ANR-MM Solid Carbide Insert, Grade IC845, AlTiN - Iscar 5668248

MFR# 5668248ISO/ANSI# S845 SNMU 1806ANR-MMCat# S845 SNMU 1806ANR-MM IC845Series HELIDO

$34.13List $43.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC845
MaterialSolid Carbide
CoatingAlTiN

Description

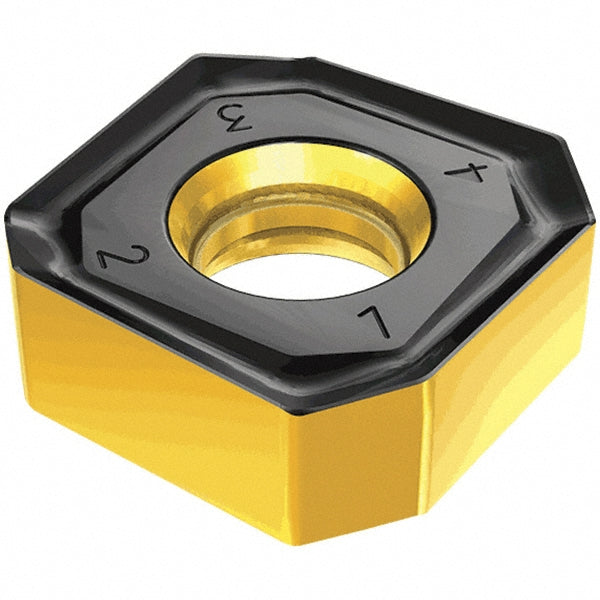

The Iscar 5668248 is a S845 SNMU 1806ANR-MM solid carbide indexable insert, grade IC845, AlTiN coated. Suited for steel.

Specifications

Ansi codeS845 SNMU 1806ANR-MM IC845
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilitySOF45
Cutting edge effective length0.1380
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.7402
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size18
Insert size code1806
Insert styleSNMU
Iso codeS845 SNMU 1806ANR-MM
Length0.7402
Length range0.7000 to 0.9000
Manufacturers catalog numberS845 SNMU 1806ANR-MM IC845
Manufacturer gradeIC845
Material applicationSteel
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.7402
