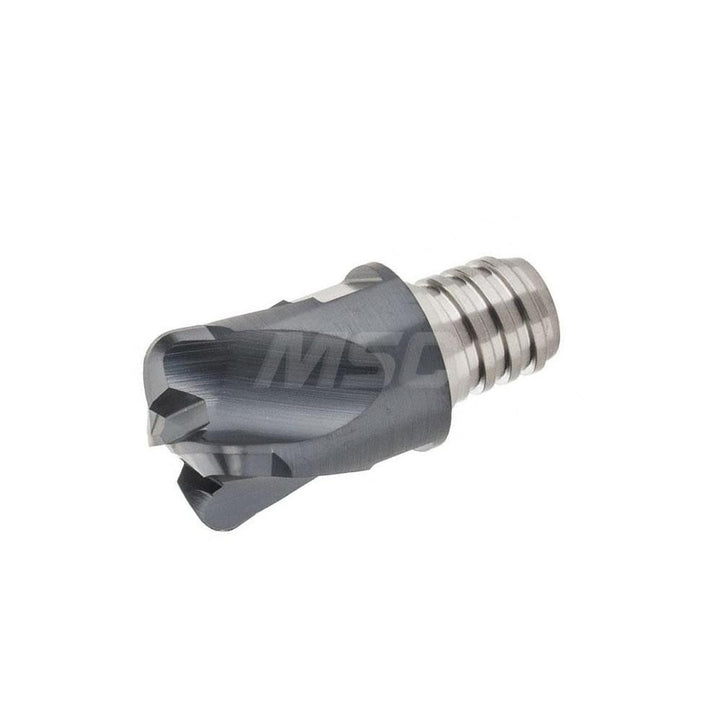

Carbide Insert, Grade IC903, TiAlN - Iscar 5668259

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 5668259

MFR# 5668259Series MM EFF

$125.71List $161.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC903
CoatingTiAlN

Description

The Iscar 5668259 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius1.0000
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder in0.3940
Functional length0.3940
Included angle degree83
Insert handRight Hand
Insert size100T2R1.0
Lead angle97
Length of cut0.0180in
Manufacturers catalog number5668259
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.0180
Milling tip full descriptionMM EFF100T2R1.0-6T06H
Milling tip styleMM EFF
Milling tip typeHigh Feed
Number of flutes6
Overall length0.3940in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
