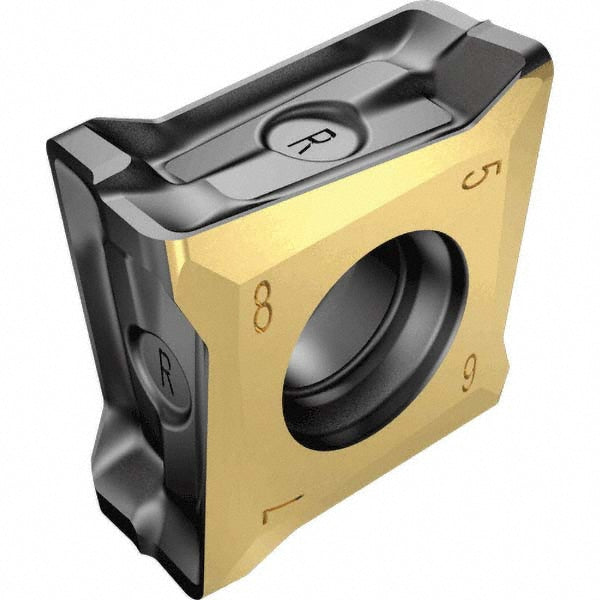

T890 LNHT 1306PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5668446

MFR# 5668446ISO/ANSI# T890 LNHT 1306PNTRCat# T890 LNHT 1306PNTR IC830Series LOGIQ8TANG

$34.83List $44.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5668446 is a T890 LNHT 1306PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT890 LNHT 1306PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT890
Cutting edge effective length0.5430
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNHT
Iso codeT890 LNHT 1306PNTR
Length0.5430
Length range0.5000 to 0.6000
Manufacturers catalog numberT890 LNHT 1306PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3740
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5425
Thickness range0.5000+
Width0.2360
