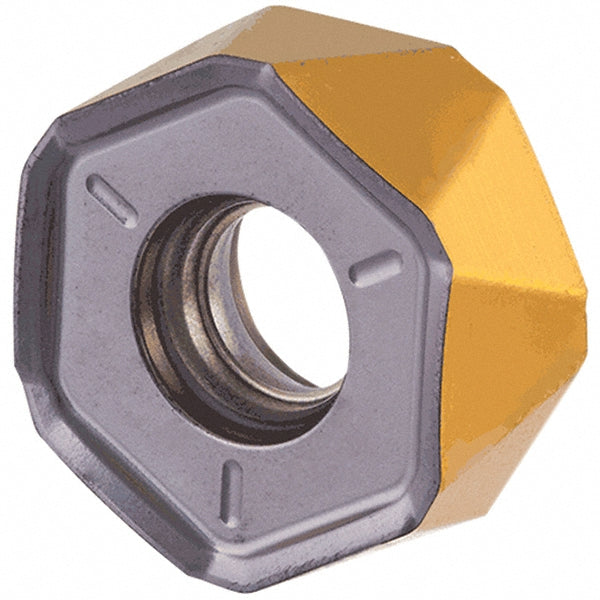

H1200 HXCU 0606-HPR Solid Carbide Insert, Grade IC840, AlTiN - Iscar 5668494

Iscar

H1200 HXCU 0606-HPR Solid Carbide Insert, Grade IC840, AlTiN - Iscar 5668494

MFR# 5668494ISO/ANSI# H1200 HXCU 0606-HPRCat# H1200 HXCU 0606-HPR IC840Series HELI12FEED

$39.28List $50.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeHexagon
GradeIC840
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5668494 is a H1200 HXCU 0606-HPR solid carbide indexable insert, grade IC840, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeH1200 HXCU 0606-HPR IC840
Chip breakerHPR
Coating finishAlTiN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityFHX
Cutting edge effective length0.2531
Cutting edge styleSharp
Included angle degree120
Inscribed circle0.5858
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size06
Insert size code0606
Insert styleHXCU
Iso codeH1200 HXCU 0606-HPR
Length0.5858
Length range0.5000 to 0.6000
Manufacturers catalog numberH1200 HXCU 0606-HPR IC840
Manufacturer gradeIC840
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.1180
Multi use toolYes
Number of cutting edges12
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness in9/32
Thickness range0.2500 to 0.3500
Width0.5858
