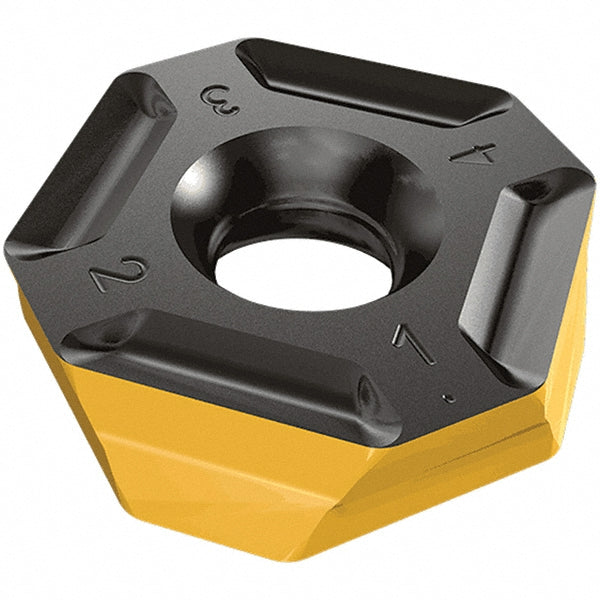

IQ845 SYHU 0704ADN Solid Carbide Insert, Grade IC5500, TiCN - Iscar 5668496

Iscar

IQ845 SYHU 0704ADN Solid Carbide Insert, Grade IC5500, TiCN - Iscar 5668496

MFR# 5668496ISO/ANSI# IQ845 SYHU 0704ADNCat# IQ845 SYHU 0704ADN IC5500Series DOVEIQMILL

$28.34List $36.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC5500
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5668496 is a IQ845 SYHU 0704ADN solid carbide indexable insert, grade IC5500, TiCN coated. Suited for steel.

Specifications

Ansi codeIQ845 SYHU 0704ADN IC5500
Chip breakerAND
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityIQ845
Cutting edge effective length0.5118
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code0704
Insert styleSYHU
Iso codeIQ845 SYHU 0704ADN
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog numberIQ845 SYHU 0704ADN IC5500
Manufacturer gradeIC5500
Material applicationSteel
Maximum depth of cut0.1810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.5433
