Carbide Insert, Grade IC908, TiAlN - Iscar 5668527

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5668527

MFR# 5668527Series MM HCD

$63.33List $81.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

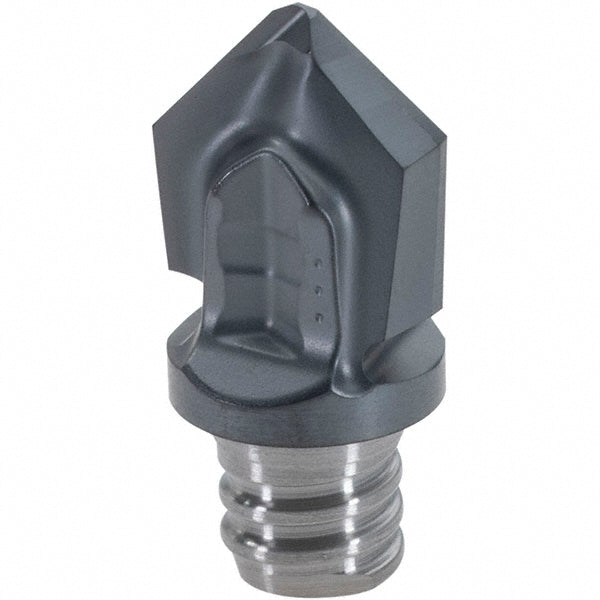

The Iscar 5668527 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.0590
Cutting width0.0590in
Extension from holder in0.5510
Functional length0.5510
Included angle degree140
Insert handRight Hand
Insert size100-090-2T06
Lead angle90
Length of cut0.3980in
Manufacturers catalog number5668527
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1770
Milling tip full descriptionMM HCD100-090-2T06-N
Milling tip styleMM HCD
Milling tip typeChamfer
Number of flutes2
Overall length0.5510in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
