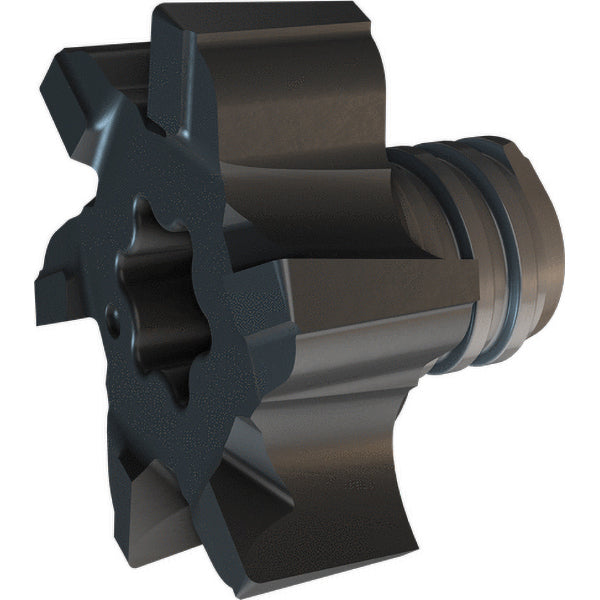

Carbide Insert, Grade IC908, TiAlN - Iscar 5668600

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5668600

MFR# 5668600Series MM FM

$123.29List $157.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

The Iscar 5668600 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0157
Cutting diameter0.9840
Cutting width0.984
Functional length0.3310
Included angle degree90
Insert handRight Hand
Insert size250-75R0.4
Lead angle90
Length of cut0.2953
Manufacturers catalog number5668600
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2953
Milling tip full descriptionMM FM250-75R0.4-06T10
Milling tip styleMM FM
Milling tip typeFace
Number of flutes6
Overall length0.331
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
