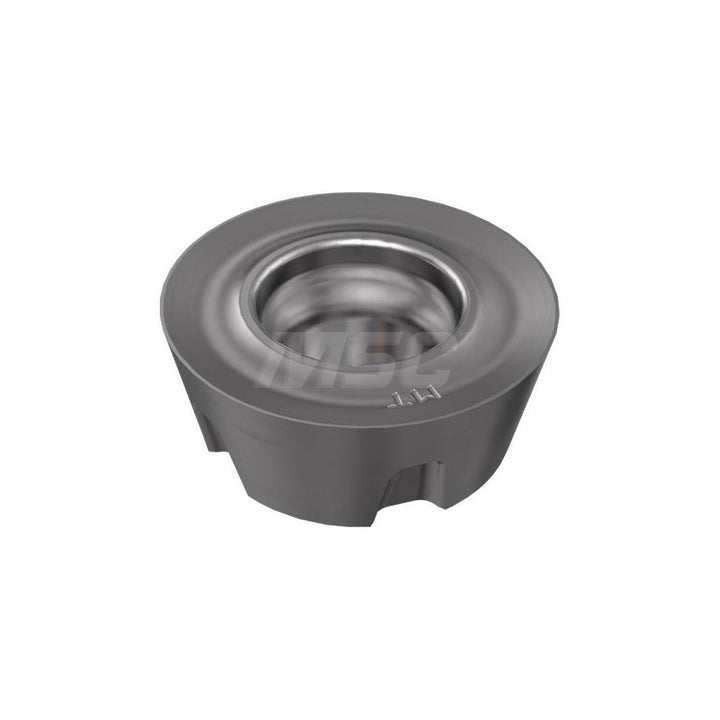

RPHX 1204M0-MT5 Solid Carbide Insert, Grade IC5500, TiCN - Iscar 5668913

Iscar

RPHX 1204M0-MT5 Solid Carbide Insert, Grade IC5500, TiCN - Iscar 5668913

MFR# 5668913ISO/ANSI# RPHX 1204M0-MT5Cat# RPHX 1204M0-MT5 IC5500Series ROUNDMILL

$22.02List $28.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC5500
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5668913 is a RPHX 1204M0-MT5 solid carbide indexable insert, grade IC5500, TiCN coated. Suited for steel.

Specifications

Ansi codeRPHX 1204M0-MT5 IC5500
Chip breakerMT5
Coating finishTiCN
Coating processCVD
Corner radius0.2362
Cutter series compatibilityFRMT
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHX
Iso codeRPHX 1204M0-MT5
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPHX 1204M0-MT5 IC5500
Manufacturer gradeIC5500
Material applicationSteel
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges5
Primary workpiece materialSteel
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
