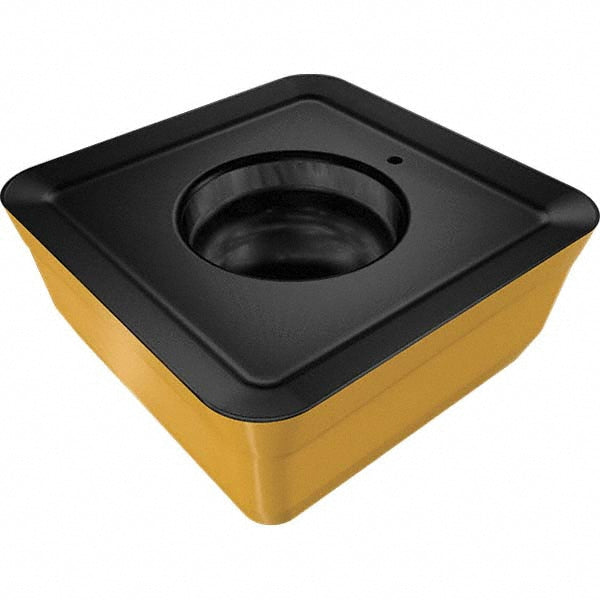

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5668935

Iscar

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5668935

MFR# 5668935ISO/ANSI# FFQ4 SOMT 120516HPCat# FFQ4 SOMT 120516HP IC830Series MILL4FEED

$21.87List $28.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5668935 is a FFQ4 SOMT 120516HP solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeFFQ4 SOMT 120516HP IC830
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityFFQ4
Cutting edge effective length0.2640
Cutting edge styleContinuous
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120516
Insert styleSOMT
Iso codeFFQ4 SOMT 120516HP
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberFFQ4 SOMT 120516HP IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width in1/2
