Iscar

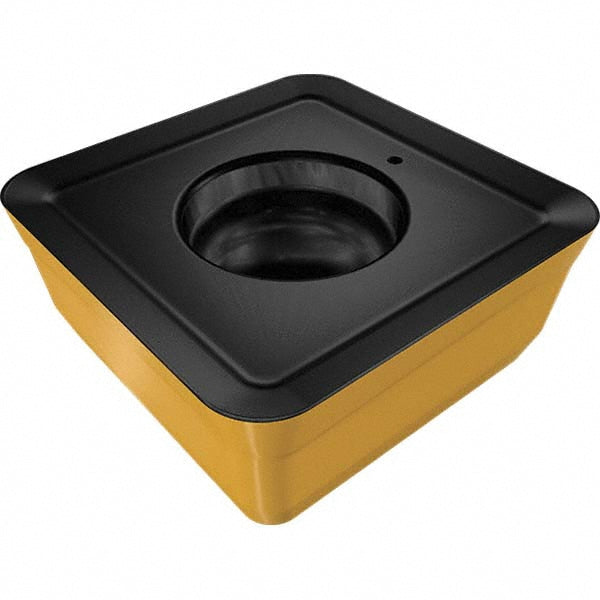

FFQ4 SOMT 120516T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5668936
MFR# 5668936ISO/ANSI# FFQ4 SOMT 120516TCat# FFQ4 SOMT 120516T IC808Series MILL4FEED
$21.87List $28.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5668936 is a FFQ4 SOMT 120516T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeFFQ4 SOMT 120516T IC808
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityFFQ4
Cutting edge effective length0.2640
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120516
Insert styleSOMT
Iso codeFFQ4 SOMT 120516T
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberFFQ4 SOMT 120516T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width in1/2
