Iscar

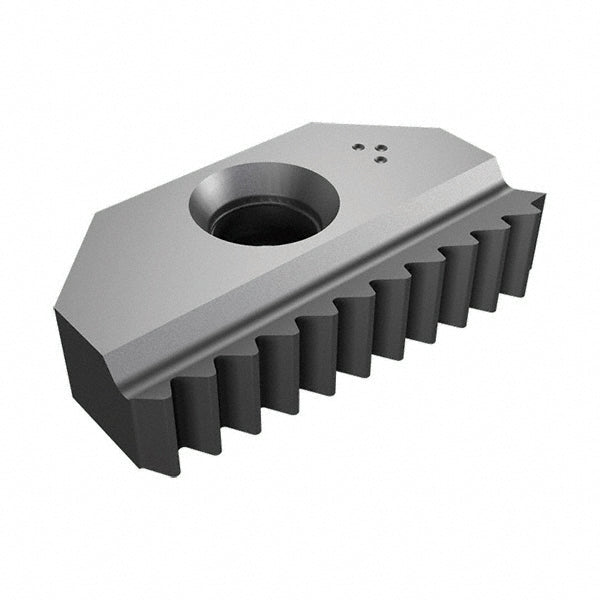

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5669479
MFR# 5669479ISO/ANSI# ISO 13399Series MillThread
$80.74List $103.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5669479 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
External pitch1.814 mm
External threads per inch14
Insert materialCarbide
Insert size code2104
Insert styleMT LNHT
Internal threads per inch14
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Primary workpiece materialUniversal
StandardsISO 13399
Teeth per inch14
Thickness0.1890
Thread standardNPT
Thread typeInternal & External
