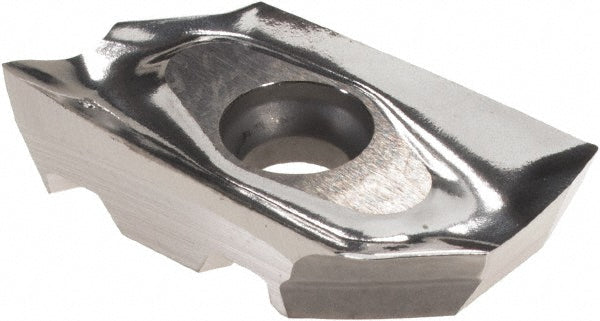

HM90 AXCR 150502R-P Solid Carbide Insert, Grade IC28 - Iscar 5680654

Iscar

HM90 AXCR 150502R-P Solid Carbide Insert, Grade IC28 - Iscar 5680654

MFR# 5680654ISO/ANSI# HM90 AXCR 150502R-PCat# HM90 AXCR 150502R-P IC28Series HELIALU

$44.51List $57.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5680654 is a HM90 AXCR 150502R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 AXCR 150502R-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/128
Cutter series compatibilityHM90-15
Cutting edge effective length0.5510
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150502
Insert styleAXCR
Iso codeHM90 AXCR 150502R-P
Length0.7560
Length range0.7000 to 0.9000
Manufacturers catalog numberHM90 AXCR 150502R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.5510
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.3940
