Iscar

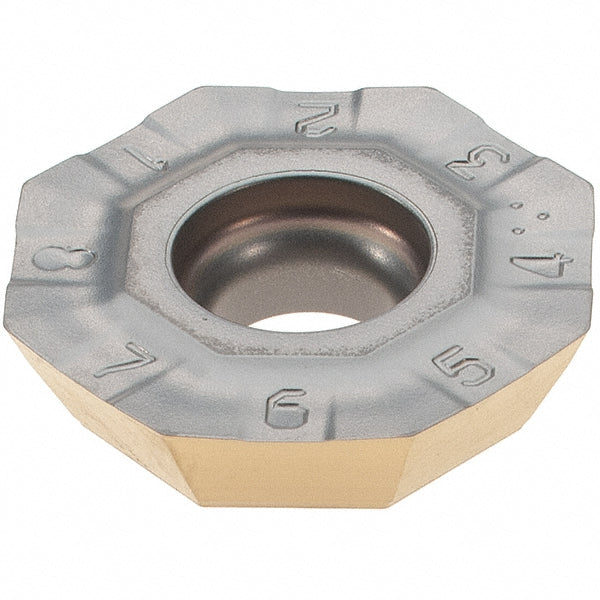

OFCR 07T3-AEN Solid Carbide Insert, Grade IC380, TiCN - Iscar 5681128
MFR# 5681128ISO/ANSI# OFCR 07T3-AENCat# OFCR 07T3-AEN IC380Series HELIOCTO
$30.14List $38.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC380
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5681128 is a OFCR 07T3-AEN solid carbide indexable insert, grade IC380, TiCN coated. Suited for superalloys & titanium, hard material.
Specifications
Ansi codeOFCR 07T3-AEN IC380
Chip breakerAEN
Coating finishTiCN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityHOF-R07
Cutting edge effective length0.1810
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7008
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code07T3
Insert styleOFCR
Iso codeOFCR 07T3-AEN
Length0.7008
Length range0.7000 to 0.9000
Manufacturers catalog numberOFCR 07T3-AEN IC380
Manufacturer gradeIC380
Material applicationSuperalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1710
Thickness range0.1500 to 0.1750
Width0.7008
