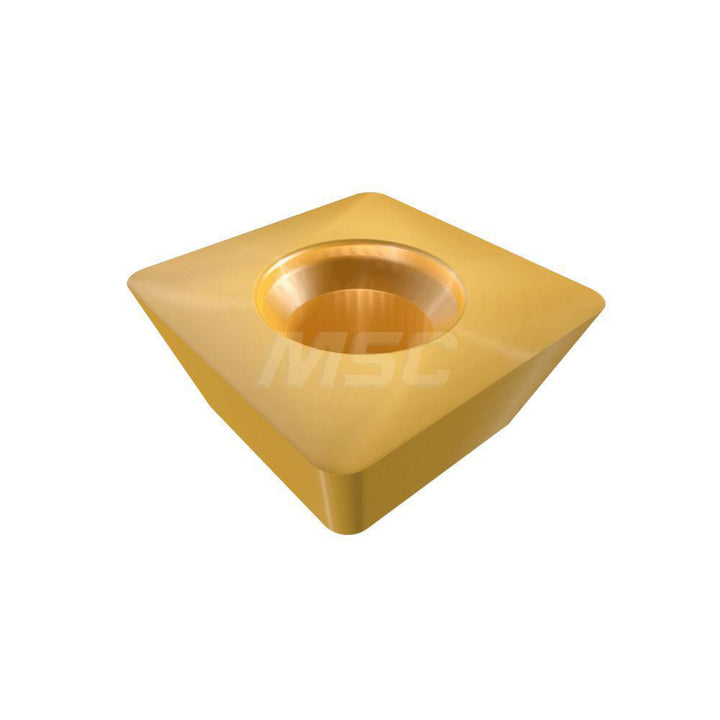

SDHW 100408-TN Solid Carbide Insert, Grade IC882, AlTiN - Iscar 5683371

Iscar

SDHW 100408-TN Solid Carbide Insert, Grade IC882, AlTiN - Iscar 5683371

MFR# 5683371ISO/ANSI# SDHW 100408-TNCat# SDHW 100408-TN IC882Series XQUAD

$43.18List $55.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5683371 is a SDHW 100408-TN solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeSDHW 100408-TN IC882
Chip breakerTN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySDK
Cutting edge effective length0.3622
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleSDHW
Iso codeSDHW 100408-TN
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberSDHW 100408-TN IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.3622
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3940
