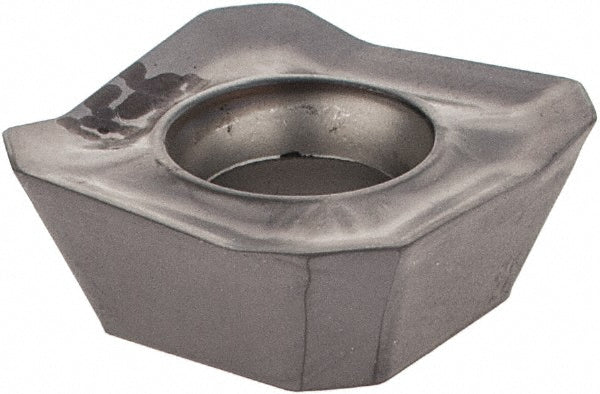

SEKT 1204AFR-HM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5690318

Iscar

SEKT 1204AFR-HM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5690318

MFR# 5690318ISO/ANSI# SEKT 1204AFR-HMCat# SEKT 43AFR-HM IC950Series ISCARMILL

$24.09List $30.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5690318 is a SEKT 1204AFR-HM solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeSEKT 43AFR-HM IC950
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF92ST; F45ST
Cutting edge effective length0.5079
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEKT
Iso codeSEKT 1204AFR-HM
Length0.5000
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKT 43AFR-HM IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.2520
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in13/64
Thickness range0.2000 to 0.2200
Width in1/2
