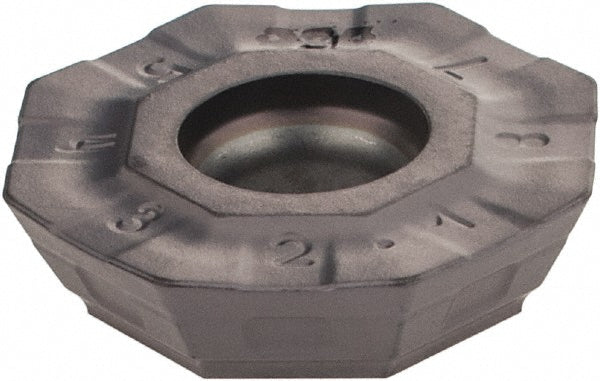

OFMT 07T3-AEN Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5690378

Iscar

OFMT 07T3-AEN Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5690378

MFR# 5690378ISO/ANSI# OFMT 07T3-AENCat# OFMT 07T3-AEN IC928Series HELIOCTO

$22.02List $28.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5690378 is a OFMT 07T3-AEN solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOFMT 07T3-AEN IC928
Chip breakerAEN
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityHOF-07
Cutting edge effective length0.1540
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7114
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code07T3
Insert styleOFMT
Iso codeOFMT 07T3-AEN
Length0.7114
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMT 07T3-AEN IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.1540
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1790
Thickness range0.1750 to 0.1850
Width0.7114
