APCT 100302R-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5690666

Iscar

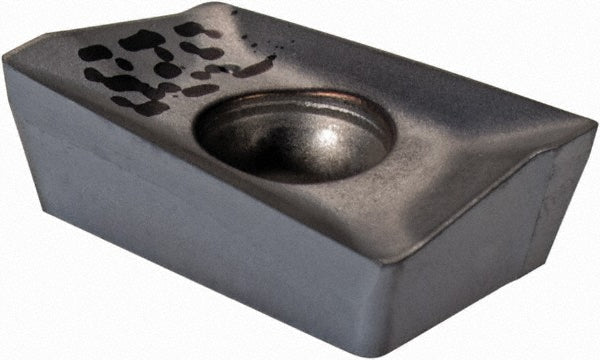

APCT 100302R-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5690666

MFR# 5690666ISO/ANSI# APCT 100302R-HMCat# APCT 100302R-HM IC328Series HELIMILL

$29.67List $38.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5690666 is a APCT 100302R-HM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPCT 100302R-HM IC328
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0098
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100302
Insert styleAPCT
Iso codeAPCT 100302R-HM
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPCT 100302R-HM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; K40
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2640
