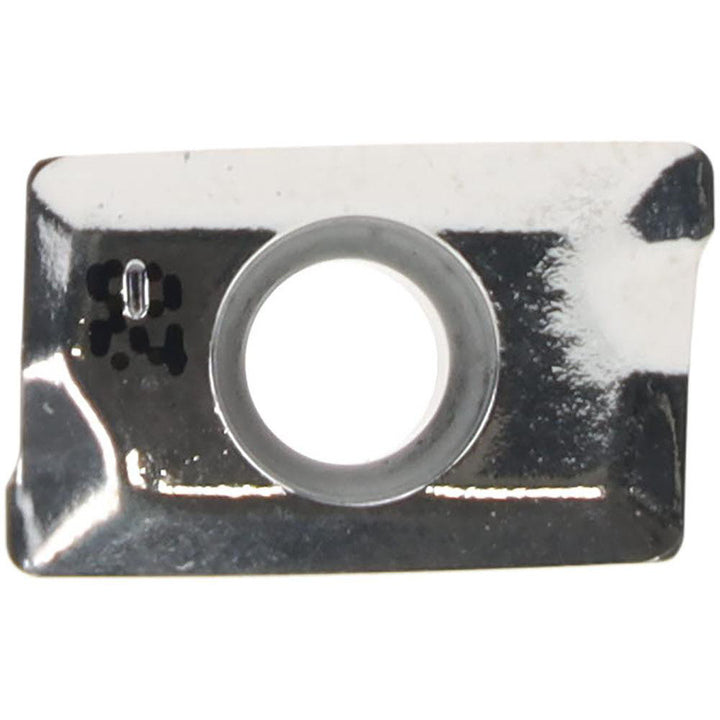

ADCR 1505PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5690893

Iscar

ADCR 1505PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5690893

MFR# 5690893ISO/ANSI# ADCR 1505PDFR-PCat# ADCR 1505PDFR-P IC28Series HELIMILL

$27.48List $35.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5690893 is a ADCR 1505PDFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeADCR 1505PDFR-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityHP .90-15
Cutting edge effective length0.5710
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADCR
Iso codeADCR 1505PDFR-P
Length0.6280
Length range0.6000 to 0.6500
Manufacturers catalog numberADCR 1505PDFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3740
